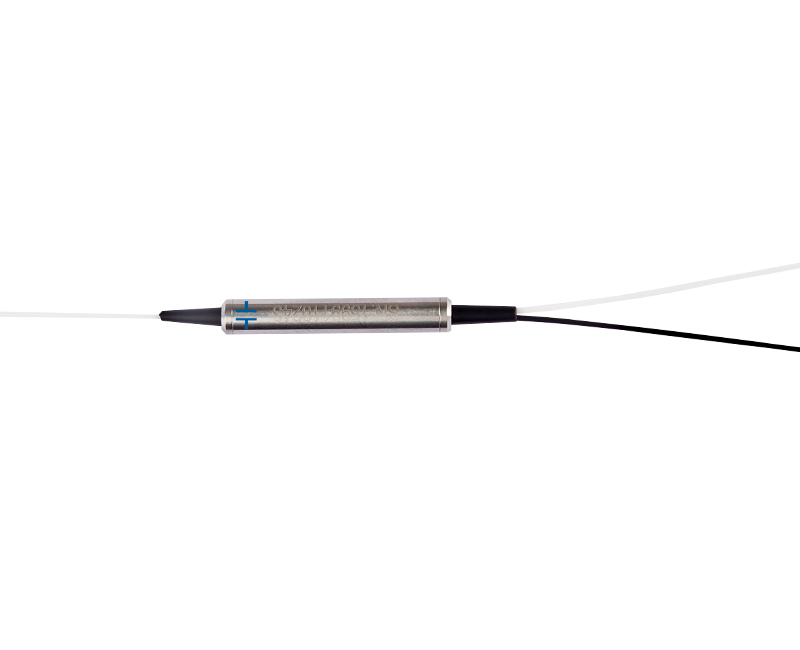

CWDM Device
CWDM is a low-cost method to maximize existing fiber by decreasing the channel spacing between wavelengths. CWDM has a lower cost per channel than dense WDM (DWDM) and no configuration is necessary. CWDM optical devices can increase bandwidth on existing fiber infrastructure and alleviate fiber exhaustion. CWDM optical devices are available as 4-channel, 8-channel or 16-channel mux/demux modules or as an add/drop module.
Feature:
(1) Low Insertion Loss & High Isolation.
(2) Low PDL.
(3) Compact Design.
(4) High Reliability and Stability.
Application:
(1) CWDM System.
(2) PON Networks.
(3) CATV Links.
Specification:
Parameter | Specification | Unit | |
Center Wavelength | ITU±1.0 | nm | |
Passband | ITU±6.5 | nm | |
Operating Wavelength | 1260~1620 or 1460~1620 | nm | |
Channel Space | 20 | nm | |
Insertion Loss | Transmission band | 0.7 | dB |
Reflection band | 0.4 | dB | |
Isolation | Transmission band | 30 | dB |
Reflection band | 12 | dB | |
Passband Ripple | 0.5 | dB | |
Polarization Dependent Loss | 0.1 | dB | |
Polarization Mode Dispersion | 0.1 | ps | |
Return Loss | 45 | dB | |
Directivity | 45 | dB | |
Maximum Optical Power | 500 | mW | |
Operating Temperature | -5~65 | ℃ | |
Storage Temperature | -40~85 | ℃ | |
Package Dimension (mm) (Φ×L) | Φ5.5 * L34 | mm | |
Φ3.6 * L26 | |||
Notes: 1. Specified without connectors. 2. Add an additional 0.2dB loss per connector.

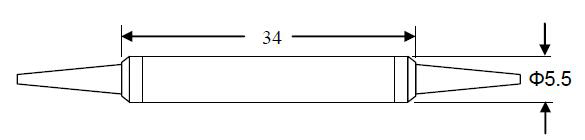

Dimension:
Ordering information:
